What You Need to Know About Micronic Dutch Weave Filter Mesh
Dutch weave wire mesh is commonly used as filter media. Our micronic Dutch weave filter mesh is available in various meshes and weaves, each with its own advantages. The types of dutch weave wire cloth we offer include plain dutch weave, twilled dutch weave, and reverse dutch weave. These types of wire mesh are available in either T304 Stainless Steel or T316 Stainless Steel.
Plain Dutch Weaves
Plain dutch weaves offer strength and rigidity along with fine filtration capabilities. The plain dutch weave is the combination of Dutch weave and plain weave. Each warp wire with coarse wire diameter passes alternately over and under one weft wire to supply high tensile strength for the netting.
Plain Dutch Weave Mesh Sizes
| Mesh | Wire Diameter (Inch) | Micron Absolute | Micron Nominal |
|---|---|---|---|
| 12 x 64 | .023/.0165 | 270-290 | 200 |
| 14 x 88 | .020/.013 | 220-240 | 150 |
| 24 x 110 | .015/.010 | 115-125 | 80 |
| 30 x 150 | .009/.007 | 95-100 | 65 |
| 50 x 250 | .0055/.0045 | 56-63 | 40 |
| 40 x 200 | .007/.0055 | 70-75 | 55 |
| 80 x 400 | .0049/.0028 | 40-45 | 35 |
Twilled Dutch Weaves
Twilled dutch weaves offer even greater strength and finer filtration ratings. In a twilled weave, the wires cross two under and two over, allowing heavier wires and higher mesh counts.
Twilled Dutch Weave Mesh Sizes
| Mesh | Wire Diameter (Inch) | Micron Absolute | Micron Nominal |
|---|---|---|---|
| 20 x 250 | .0098/.0079 | 110-120 | 100 |
| 30 x 250 | .010/.008 | 107-114 | 75 |
| 80 x 700 | .0040/.0030 | 35-38 | 25 |
| 120 x 400 | .0040/.0025 | 50-55 | 40 |
| 120 x 600 | .0040/.0025 | 40-45 | 30 |
| 165 x 800 | .0028/.0020 | 24-26 | 15 |
| 165 x 1400 | .0028/.0016 | 16-18 | 10 |
| 200 x 600 | .0024/.0016 | 28-32 | 20 |
| 200 x 1400 | .0028/.0016 | 12-14 | 5 |
| 325 x 2300 | .0015/.0010 | 8-9 | 2 |

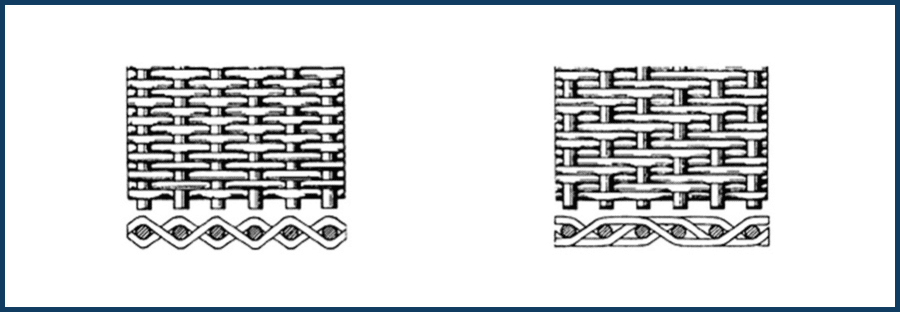

Plain Dutch Weave vs. Twilled Dutch Weave
Reverse Dutch Weaves
Reverse dutch weave wire mesh uses two sizes of wire diameter, finer wire in one direction and coarser wire in the other direction. In reverse dutch weave, the coarser wire is in the weft direction and the finer wire is in the warp direction.
Find the Right Micronic Dutch Weave Filter Mesh for Your Job
The professionals at Lawrence Sintered Metals are here to help you find just the right wire mesh for your job. If you have any questions regarding micronic dutch weave filter mesh or whether plain dutch weave, twilled dutch weave, and reverse dutch weave is the right choice, please contact us today.
